OS hom Open Loop Stepper Tsav Hollow Rotary Actuators
Lub hom OS GIGAGER Hollow Rotary Actuator yog ib txoj kab ntawm cov khoom uas muab ua ke ib lub siab rigidity hollow qaum rooj nrog ib lub voj voj voom khawm stepper tsav tsheb thiab cov neeg tsav tsheb pob. Nws khaws cov yooj yim ntawm kev siv lub cav ntoo, tab sis tseem cia rau qhov tseeb ntawm qhov loj ntawm cov inertia loj.
• Cov neeg ua hauj lwm nrog kev ua ke thiab cov kauj ruam ua kom yooj yim tsim tsim
• Loj kab uas muaj lub voj voog loj loj
• Cov kev xaiv yoojyim rau kev siv khoom siv hluav taws xob
1. Hollow Rotary Actuator yog dab tsi?
Lub Hollow Rotary Actuator yog ib hom tshiab-tshiab ntawm hom khoom thauj khoom. Kev teeb tsa kev ua haujlwm siab, kev siab tshaj, kev rigidity, thiab kev ua haujlwm siab, nws muab cov kev pab cuam ntawm servo motor, cam indexer thiab DD lub cev, ua kom muaj kev sib npaug ntawm cov khoom peb.
Lub zog ua kom muaj zog ntawm kev ua kom muaj zog hlau thiab cov tawv qhov muag ntawm cov hniav tom qab kev ua haujlwm yuav ncav cuag HRC60 ± 2 °.
Nrog kev pabcuam ntawm cov thom khwm ncaj qha looj stepper lub cev, Hollow Rotary Actuator tuaj yeem ua rau ntu ntawm txhua lub, uas tuaj yeem ntsib cov lej tswj kom tus cam indexer tsis tuaj yeem ua tiav. Qhov muab qhov tseeb yog piv nrog rau cov tsav tsheb ncaj qha uas muaj peev xwm paub txog qhov chaw ntawm lub thev tso rau hauv luv luv.
2. Dab tsi yog qhov khoom ntawm OS yam Hollow Rotary Actuator?
• Txhim kho kev ntseeg siab thiab txo nqi ntawm cov kev sib txuas lus ncaj qha
Cov khoom siv cuab yeej thiab neeg hlau npab yuav tsum ncaj nraim ntawm cov lus tso tawm ntawm Hollow Rotary Actuator. Nws tuaj yeem txuag lub sijhawm thiab tus nqi rau cov khoom tsim kho, qhov kev faib, kev siv debugging, thiab lwm yam., Uas piv nrog kev siv yam khoom xws li tshuab raj thiab siv.
• Zoo tshaj Alternative rau DD Lub Cev thiab Cov Qauv Khais
GIGAGER Hollow Rotary Actuator yuav siv qhov zoo ntawm servo motor, cam indexer thiab DD lub cev, ua qhov ntsuas ntawm txhua lub kaum sab xis thiab kev ua haujlwm siab.
• High Precision Positioning tsis muaj Backlash
Tsis muaj qhov nraub qaum, qhov rov ua dua qhov ntev txog ± 5 arc vib nas this, qhov tseeb qhov tseeb ≦ 2 arc min.
Lus Cim: Qhov ntsuas ntawm qhov rov ua dua yog ntsuas ntawm qhov kub (qhov kub li cas) nyob rau hauv qhov khoom siv tas li.
• Cov Thoob Hauv Hollow Hollow Structures Ua Kev Ruaj Ntseg thiab Kav Dej Kom Sib Ntsig
Kev thaiv thiab cov kav dej yog cov yooj yim dua thiab yooj yim, thiab qhov zoo ntawm qhov yeeb yaj kiab no yog qhov tshwj xeeb tshaj li hauv cov xov tooj cua thiab cov kav dej.
3. Qhov System Configuration ntawm OS hom Hollow Rotary Actuator
Configuration ntawm OS hom Hollow Rotary Actuator | |||
Txheem Kev Teeb Meem | Optional Accessories | ||
1 | Hollow cov lus teb × 1 teeb | 1 | Sensor phaj × 1 teeb |
2 | Open Loop Stepper Motor × 1 teeb | 2 | Photoelectric Tsev Sensor × 1 teeb |
3 | Neeg tsav tsheb rau OS Stepping Motor × 1 teeb | 3 | Sensor Bracket × 1 teeb |
4. Muaj pes tsawg tus qauv?
Qauv | Duav Hom | Tus Zauv Ntev | Iav Piv Txwv | Permissible Torque | Permissible ceev | Permissible Moment ntawm Inertia Load |
GSN60-18K-OS | Hla Raug Cov Kabmob | 60 hli (2.36 hauv.) | 1:18 | 1.2 Nm | 40 rpm (rooj) | 5 Nm |
GSN85-18K-OS | Hla Raug Cov Kabmob | 85 hli (3.35 tawm hauv) | 1:18 | 3.2 Nm | 60 rpm (rooj) | 10 Nm |
GSN130-18K-OS | Hla Raug Cov Kabmob | 130 hli (5.12 nyob rau hauv.) | 1:18 | 20 Nm | 40 rpm (rooj) | 50 Nm |

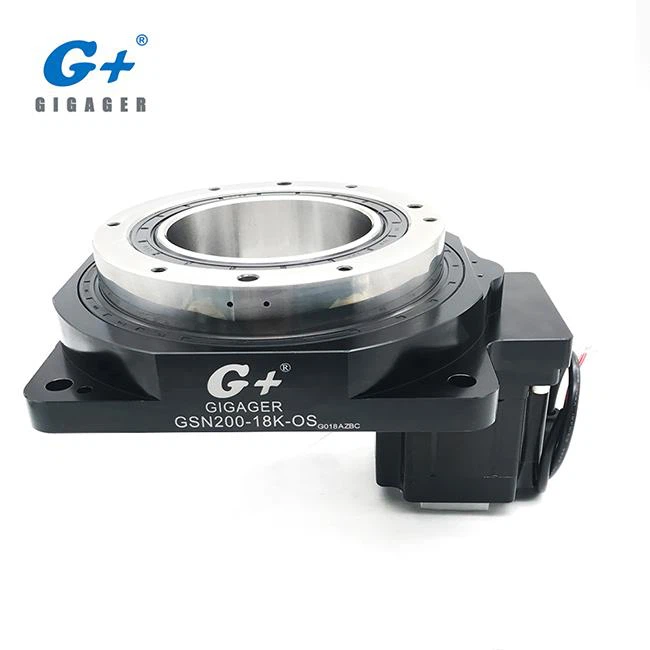

GSN200-18K-OS | Hla Raug Cov Kabmob | 200 hli (7.87 nyob rau hauv.) | 1:18 | 50 Nm | 40 rpm (rooj) | 100 Nm |
GSB60-05K-OS | Tapered Cov Menyuam Bearing | 60 hli (2.36 hauv.) | 1: 5 | 4.9 Nm | 200 rpm (rooj) | 5 Nm |
Yog xav paub ntxiv, thov mus saib daim Catalog. (download lub PDF hauv nplooj ntawv no)
5. Cov Hom Kev Ntaus Nce Yuav Siv Cov Hollow Rotary Actuator?
Lub Hollow Teb Cov Lus Ua tau siv rau ntau daim ntawv thov xws li CNC Indexing Ntaus, Tawm Suab, Tub Ntxhais Radar, Laser Npav Tshuab, Gyro Xeem, Qhov Teeb Meem Kev Tshaj Tawm, Hauv Hluav Taws Xeeb ntawm lub xov tooj ntawm tes thiab lwm yam khoom siv hluav taws xob. Nws kuj siv tau rau neeg hlau npab cov pob qij txha, cov khoom siv hluav taws xob, cov cuab yeej siv, kev siv laser, thiab lwm yam.
Demo yeeb yaj duab Link:
a. Demo rau Gyro Test https://youtu.be/PwKiObIMXRM
b. Demo rau cov Axis 4 los sis 5 Axis https://youtu.be/L9gheXQ6zLc
Xav paub ntau video, thov nias qhov GIGAGER Youtube Channel: https://www.youtube.com/ playlist? List=PLT-2VrhPP3YItwfN_wA4YkS8bzfBpJu39
6. Xaiv Tus Qauv Hauv Txoj Cai rau Kuv Tus Ntaus Li Cas?
Yeej, peb xav tau cov ntaub ntawv hauv qab no, thov xa mus rau peb kev muag khoom.
a, Dab tsi yog qhov nyhav ntawm qhov chaw? Dimension? Yam khoom tsis raug zoo lossis niaj hnub kwv?
b, Cov khoom siv: Cov hlau los yog Aluminium, los yog_________, Txheej Txhuas = ______ hli, Thickness = _______ mm
c, Pes Tsawg Segmentation? Los yog qhov kev tawm suab li cas?
d, Txhua sij hawm mus ncig xyuas = = Muab lub sij hawm + Lub sij hawm muab tso, _________ = ________ + _________ vib nas this
e, Fixture hnyav: ____________ kg / pcs
f, yees duab, kos duab los yog ntau dua info txog koj ntaus ntawv
Peb tus engineer yuav tsum tawm tswv yim rau tus qauv tsim raws li koj txoj cai.
Yog xav paub ntxiv txog cov qauv xaiv ntawm Hollow Rotary Actuator, thov saib ntawm Cov Qauv Xaiv Cov Qauv Hauv Kem.
7. Yuav Muab Dab Tsi Rau Hollow Rotary Actuator?
Thov mus saib Catalog lossis tiv tauj peb kev muag khoom.
8. Vim li cas thiaj xaiv GIGAGER?
Ib qho, Peb muaj kev cob qhia R & D nrog cov tub ntxhais kawm ntawv kev paub txog kev ua lag luam thiab kev ua dej num zoo. Nyob rau hauv lub dhau los 10 xyoo, peb muab cov khoom zoo rau cov neeg uas nto moo hauv lub ntiaj teb thiab Tuam Tshoj. Hauv qab no yog peb cov neeg.
b, GIGAGER khaws kev sib txuas lus zoo thiab kev koom tes nrog cov kws txawj thiab kev lag luam ntawm suav Taiwan thiab Nyiv rau ntau tshaj 10 xyoo uas sib txeeb tob kev daus.
c, Muaj peev xwm ua kom muaj peev xwm thiab muaj kev lag luam siab, muab cov neeg tuaj yeem nrog kev sib tw nrog cov khoom zoo.
d, Peb muab 24 teev kev tshaj lij thiab kev txhawb nqa tom qab muag.
e, Peb muab kev cai ua tau kev pab cuam raws li cov neeg xav tau.
f, Lub sijhawm ceev ceev. Rau kev khiav ceev reducers, peb muaj txaus Tshuag thiab tuaj yeem xa mus rau tus qhua sai.
9. Lus nug
Q1. Yuav ua li cas xaiv ib tug reducer uas ua tau raws li peb xav tau?
A: Koj tuaj yeem xa koj daim ntawv teev npe mus xaiv tus reducer los yog peb tuaj yeem pab xaiv cov qauv zoo raws li koj xav tau. Rau cov qauv xaiv, thov hu rau peb cov kev muag khoom.
Q2. Peb yuav muab cov ntaub ntawv dab tsi ua ntej muab tso rau kev txiav txim yuav?
A: Thov hu rau peb kev muag khoom thiab qhia txog hom reducer, piv, hom input thiab output, flange input, mounting txoj hauj lwm, thiab tsav tsheb thiab lwm yam.
Q3. Koj puas yog lub chaw muag khoom lossis lub tuam txhab lag luam?
A: Peb yog cov chaw tsim khoom uas tsim cov Ceev Reducer. Peb zoo siab tos txais koj tuaj xyuas peb.
Q4. Koj Cov Lus Cog Tseg Muaj Dab Tsi?
A: Peb muab 12 lub hlis dawb warranty txij thaum hnub yug.
Yog xav paub ntxiv, thov saib catalog.
Q5. Koj puas tau sim tag nrho koj cov khoom ua ntej tus menyuam?
A: Yog, peb muaj 100% xeem ua ntej yug. Thiab peb txais kev pom zoo thib peb tog ua ntej yug.
Q6. Koj cov nyiaj them nqi yog dab tsi?
A: Peb txais T / T thiab Alibaba Trade Assurance. Nyob rau hauv Alibaba Trade Assurance, peb txhawb txoj kev them nyiaj los ntawm Boleto, VISA, Master Card, e-Checking, Them Tom qab thiab T / T. Koj tuaj yeem xaiv txoj kev tsim nyog rau kev them nqi.
Peb lees txais tag nrho cov nyiaj them ua ntej xa.
Q7. Li cas ntawm koj lub sijhawm?
A: Rau cov khoom txheem, peb muaj cov Tshuag Khoom Noj, nws yuav raug xa tawm hauv 3 hnub thaum tau txais koj cov nyiaj them tuaj.
Rau ntau ntau lawm, nws yuav tsum noj 15-20 hnub rau cov khoom siv thiab ces xa tawm.
Q8. Koj puas xav tau cov chaw faib khoom hauv zos?
A: Peb zoo siab tos txais cov neeg muag khoom hauv zos rau txoj kev sib koom ua ke yeej. Peb pib cov kev lag luam thoob ntiaj teb zoo nyob nruab nrab ntawm xyoo 2018 uas lig tshaj peb cov teb chaws Suav lag luam rau ntau tshaj 10 xyoo.
Tam sim no, peb tab tom nrhiav rau lub lag luam hauv zos los ua peb tus lag luam los sis cov neeg lag luam tshwj xeeb. Yog xav paub ntxiv, thov hu rau peb.
Q9: Ua li cas koj ua peb txoj kev lag luam ntev thiab kev sib raug zoo?
A: Peb ua kom zoo thiab sib tw nqi kom peb cov neeg tau txais txiaj ntsig zoo;
Peb hwm txhua tus neeg raws li peb tus phooj ywg thiab peb ua lag luam yam ncaj ncees txawm lawv tuaj qhov twg tuaj.
