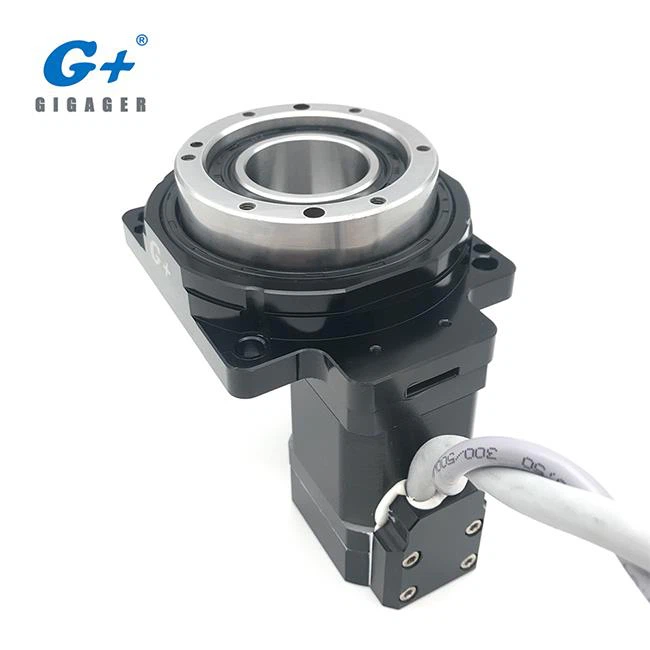

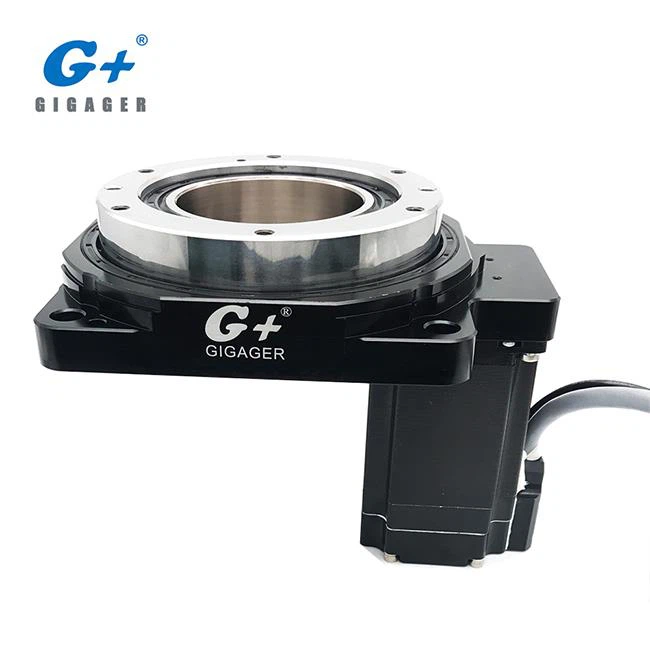

CS hom kaw voj Stepper Tsav Hollow Rotary Actuators
CS hom ntawm GIGAGER Hollow Rotary Actuator yog ib txoj kab ntawm cov khoom uas muab ua ke ib lub siab rigidity hollow qaum rooj nrog ib saab voj vias stepper tsav thiab tsav pob. Nws khaws cov yooj yim ntawm kev siv lub cav ntoo, tab sis tseem cia rau qhov tseeb ntawm qhov loj ntawm cov inertia loj.
• Cov neeg ua hauj lwm nrog kev ua ke thiab cov kauj ruam ua kom yooj yim tsim tsim
• Loj kab uas muaj lub voj voog loj loj
• Stepper lub cev muaj kev ua tau zoo
• High precision
• Lub luag haujlwm ntawm lub cev
• Stability ntawm qis qis
• Tawm tsis pub dawb
• Cov zis siab loj
• Qhov chaw yooj yim
• Pulse Input, 4-digit display, 4-digit function button driver
1. Hollow Rotary Actuator yog dab tsi?
Cov Hollow Rotary Actuator yog ib hom tshiab-tshiab hom khoom thauj khoom ntim nrog tsav thiab tsav tsheb. Kev teeb tsa kev ua haujlwm siab, kev siab tshaj, kev rigidity, thiab kev ua haujlwm siab, nws muab cov kev pab cuam ntawm servo motor, cam indexer thiab DD lub cev, ua kom muaj kev sib npaug ntawm cov khoom peb.
Nrog high-precision iav qauv thiab radial bearings, lub zog thiab rigidity zoo tuaj, lub loading ua ruaj khov. Nws tuaj yeem ua qeeb ntawm txhua lub kaum sab xis nrog servo motor lossis stepping motor, uas muaj peev xwm ua tau raws li cov tswj kev xaj uas tus cam indexer ua tsis tau tiav. Qhov muab qhov tseeb yog piv nrog rau cov tsav tsheb ncaj qha uas muaj peev xwm paub txog qhov chaw ntawm lub thev tso rau hauv luv luv.
2. Dab tsi yog qhov khoom ntawm CS hom Hollow Rotary Actuator?
• Txhim kho kev ntseeg siab thiab txo nqi ntawm cov kev sib txuas lus ncaj qha
Cov khoom siv cuab yeej thiab neeg hlau npab yuav tsum ncaj nraim ntawm cov lus tso tawm ntawm Hollow Rotary Actuator. Nws tuaj yeem txuag lub sijhawm thiab tus nqi rau cov khoom tsim kho, qhov kev faib, kev siv debugging, thiab lwm yam., Uas piv nrog kev siv yam khoom xws li tshuab raj thiab siv.
• Zoo tshaj Alternative rau DD Lub Cev thiab Cov Qauv Khais
GIGAGER Hollow Rotary Actuator yuav siv qhov zoo ntawm servo motor, cam indexer thiab DD lub cev, ua qhov ntsuas ntawm txhua lub kaum sab xis thiab kev ua haujlwm siab.
• High Precision Positioning tsis muaj Backlash
Tsis muaj qhov nraub qaum, qhov rov ua dua qhov ntev txog ± 5 arc vib nas this, qhov tseeb qhov tseeb ≦ 2 arc min.
Lus Cim: Qhov ntsuas ntawm qhov rov ua dua yog ntsuas ntawm qhov kub (qhov kub li cas) nyob rau hauv qhov khoom siv tas li.
• Cov Thoob Hauv Hollow Hollow Structures Ua Kev Ruaj Ntseg thiab Kav Dej Kom Sib Ntsig
Kev thaiv thiab cov kav dej yog cov yooj yim dua thiab yooj yim, thiab qhov zoo ntawm qhov yeeb yaj kiab no yog qhov tshwj xeeb tshaj li hauv cov xov tooj cua thiab cov kav dej.
3. Qhov System Configuration ntawm CS hom Hollow Rotary Actuator
Configuration ntawm CS hom Hollow Rotary Actuator | ||||
Txheem Kev Teeb Meem | Optional Accessories | |||
1 | Hollow cov lus teb × 1 teeb | 1 | Lub cev muaj zog × × pcs (2.5M) | |
2 | Kaw voj Stepper Motor × 1 teeb | 2 | Encoder Loader × 1 pcs (2.5M) | |
3 | Tsav tsheb rau CS Stepping Motor × 1 teeb | 3 | I / O Tswj Kab × 1 pcs (1M) | |
4 | Drive chaw nres nkoj connector × 4 pcs | 4 | Sensor phaj × 1 teeb | |
5 | Aviation plug × 2 pcs | 5 | Photoelectric sensor × 1 teeb | |
- | - | 6 | Sensor Bracket × 1 teeb | |
4. Muaj pes tsawg tus qauv?
Qauv | Duav Hom | Tus Zauv Ntev | Iav Piv Txwv | Permissible Torque | Permissible ceev | Permissible Moment ntawm Inertia Load |
GSN85-18K-CS | Hla Raug Cov Kabmob | 85 hli (3.35 tawm hauv) | 1:18 | 3.2 Nm | 160 rpm (rooj) | 10 Nm |
GSN130-18K-CS | Hla Raug Cov Kabmob | 130 hli (5.12 nyob rau hauv.) | 1:18 | 20 Nm | 120 rpm (rooj) | 50 Nm |
GSN200-18K-CS | Hla Raug Cov Kabmob | 200 hli (7.87 nyob rau hauv.) | 1:18 | 50 Nm | 100 rpm (rooj) | 100 Nm |
GSB60-05K-CS | Tapered Cov Menyuam Bearing | 60 hli (2.36 hauv.) | 1: 5 | 4.9 Nm | 300 ntawm rpm (rooj) | 5 Nm |
Yog xav paub ntxiv, thov mus saib daim Catalog. (download lub PDF hauv nplooj ntawv no)
5. Cov Hom Kev Ntaus Nce Yuav Siv Cov Hollow Rotary Actuator?
Lub Hollow Teb Cov Lus Ua tau siv rau ntau daim ntawv thov xws li CNC Indexing Ntaus, Tawm Suab, Tub Ntxhais Radar, Laser Npav Tshuab, Gyro Xeem, Qhov Teeb Meem Kev Tshaj Tawm, Hauv Hluav Taws Xeeb ntawm lub xov tooj ntawm tes thiab lwm yam khoom siv hluav taws xob. Nws kuj siv tau rau neeg hlau npab cov pob qij txha, cov khoom siv hluav taws xob, cov cuab yeej siv, kev siv laser, thiab lwm yam.
Demo yeeb yaj duab Link:
a. Demo rau Gyro Test https://youtu.be/PwKiObIMXRM
b. Demo rau cov Axis 4 los sis 5 Axis https://youtu.be/L9gheXQ6zLc
Xav paub ntau video, thov nias qhov GIGAGER Youtube Channel: https://www.youtube.com/ playlist? List=PLT-2VrhPP3YItwfN_wA4YkS8bzfBpJu39
6. Xaiv Tus Qauv Hauv Txoj Cai rau Kuv Tus Ntaus Li Cas?
Yeej, peb xav tau cov ntaub ntawv hauv qab no, thov xa mus rau peb kev muag khoom.
a, Dab tsi yog qhov nyhav ntawm qhov chaw? Dimension? Yam khoom tsis raug zoo lossis niaj hnub kwv?
b, Cov khoom siv: Cov hlau los yog Aluminium, los yog_________, Txheej Txhuas = ______ hli, Thickness = _______ mm
c, Pes Tsawg Segmentation? Los yog qhov kev tawm suab li cas?
d, Txhua sij hawm mus ncig xyuas = = Muab lub sij hawm + Lub sij hawm muab tso, _________ = ________ + _________ vib nas this
e, Fixture hnyav: ____________ kg / pcs
f, yees duab, kos duab los yog ntau dua info txog koj ntaus ntawv
Peb tus engineer yuav tsum tawm tswv yim rau tus qauv tsim raws li koj txoj cai.
Yog xav paub ntxiv txog cov qauv xaiv ntawm Hollow Rotary Actuator, thov saib ntawm Cov Qauv Xaiv Cov Qauv Hauv Kem.
7. Yuav Muab Dab Tsi Rau Hollow Rotary Actuator?
Thov mus saib Catalog lossis tiv tauj peb kev muag khoom.
