Cam Indexer
Yog ib qho ntawm cov qhab nia Cam Indexer chaw tsim khoom nyob rau hauv Suav teb teb chaws, GIGAGER tau ua hom ntawm Cam Indexing Tsav nyob rau hauv Suav teb rau ntau tshaj kaum xyoo. GIGAGER cam indexers yog tsim thiab sib sau ua ke hauv GIGAGER Shenzhen Hoobkas, siv cov tseem ceeb thiab xeev-ntawm-daim duab yees. Txhua GIGAGER globoidal cam indexer cog lus zoo, repeatability thiab raug. Cam indexers yog tsim rau ntau hom kev siv xws li tshuab hluav taws xob sib txuam cav, zaub mov ntim machine thiab kev tshuaj ntsuam zoo. GIGAGER ntau ntawm cam indexers yog ntseeg los ntawm cov paub zoo uas muaj kev sib raug zoo ntawm cov neeg nruab nrab ntawm cov koom haum Huawei, Foxconn, Han's Laser, Johnson Electric thiab lwm yam hauv Suav teb.
1. Lub Txheeb Ze Lub Zog Qhia Yog Dab Tsi?
Cam Indexer, los yog cam splitter, cam indexing tsav, cam indexing tsav, los yog globoidal cam indexer, yog ib lub tswv yim rau cov lus sib txoos sib txuas lus, uas yog muaj kev sib txuas nrog kev sib txuas lus torque, kev qhia siab ruaj khov, ruaj ntseg lag luam, kev tsim qauv, ntsuas xyuas tus kheej thaum lub caij tso, me me, qis qis, kev ua haujlwm siab thiab kev ua neej ntev.
2. Qhov Khoom Muag ntawm GIGAGER Cam Indexing Drive yog dab tsi?
GIGAGER cam indexing positioners siv dov hu rau tus cim kev du thiab ntev lub neej. Nws yog ib qho khoom tsim nyog los hloov cov tswv yim txhim kho xws li cov hlau log rau txoj kab, txoj kev khiav hauj lwm, kev iav tsis tiav thiab kev tswj cov pneumatic.
GIGAGER preload muab kev ywj pheej thiab tso cai rau xoom-backlash, muab kev raug siab thiab tsis tshua muaj sij hawm nyob ntev. Robust cam thiab turret tsim, nrog rau kev lag luam ntau tshaj plaws lub cev matched-teem koob txhaj tshuaj cam followers, cia rau siab dua kev peev xwm. Cov nta no ua GIGAGER cam indexer qhov chaw xaiv ntawm engineers thoob teb chaws.
• Precision Tsav Mechanism
Thaum lub sij hawm ntawm kev ntsuas los sis nres, tus neeg ua hauj lwm yog nyob hauv qhov chaw tsis pub dhau ntawm txoj hauj lwm uas tau muab ua, tshem tawm qhov xav tau kev xauv cov ntsiab lus.
• High Speed Performance
Kev thim rov qab yog tshem tawm los ntawm kev tso npe ua ntej rau qhov kev sib tw ntawm txoj kab lus
machined cam thiab cam cam, ua rau kev txhim kho kev lag luam zoo siab ceev. Siab
tswj kev tsuj tsuj tsuj tsuj kom poob siab vim kev thauj khoom lossis kev vibration.
• Txoj Kev Kislas
Raws li lub turret yog tsim los tig tujtaws hauv txhua txoj haujlwm (tsis hais lub kaum ntse ntse, kev ua haujlwm
thiab / los yog acceleration) tus tsav tsheb sib kis tau yooj yim thiab tsis muaj kev vibration thiab suab nrov.
• Mechanism yooj yim
Txheej ntawm tsuas yog ib lub khob thiab turret; tsis muaj qhov tsis tseem ceeb, thaum muab kev sib quas sib to taub raws caij nyoog.
• Kev Cog Lus Qhia Ua Ntej
GIGAGER tus tsim tshwj xeeb uas yog cov qauv cam nyob rau hauv qhov Performance index tsav saib xyuas kev hnyav
muaj peev xwm ua tau thaum muaj kev siab ceev indexing thiab siab siab. Qhov tseeb indexing
ntawm cov qauv qauv yog ± 30 feeb. Txawm li cas los xij, cov qauv muab kev lag luam ntau dua
muaj thaum thov.
• Tsab ntawv tsa suab
Hloov kho trapezoid curve (rau kev kub ceev thiab tsis muaj kev thev naus laus zis), hloov kho paj (rau
theem nrab / kev kub ceev thiab nruab nrab loading), hloov kho qhov tseem ceeb tshaj nkhaus (rau kev ceev qis thiab
hnyav hnyav) muaj qhov sib ceg rau cov ntawv thov.
3. Mechanism thiab Structure ntawm GIGAGER Cam Indexer
GIGAGER Cam Index Drives yog tsim los qhia tias globoidal cam nruab rau hauv cov ntawv xov xwm ncej mates nrog lub turret tsau rau cov zis tawm raws li pom hauv daim duab saum toj no. Cov xim xuab moos uas yog hluav taws xob nyob hauv qhov chaw ntawm sab npoo ntawm lub turret tuaj mus rau hauv txoj hlua ntawm qhov cam ntawm lawv cov phab ntsa.
Thaum cov khoom siv sab nrauv tig, cov cam thawm qab tig cov zis turret tom qab ib qho kev xa tawm nkhaus thaum ib txhij dov raws phab ntsa ntawm cov tav. Nyob hauv thaj tsam uas kab tav ua ke nrog lub qhov kawg ntawm lub cam, uas yog, nyob rau hauv qhov kev sib txawv hauv lub cev, cov neeg ua raws li nws txoj kev tuaj, tab sis lub turret nws tus kheej tsis tig.
Txoj kev sib tw tau txuas mus nrog ob los sis peb tus cam cam kom lub kiv puag ncig ntawm cov lus sib txuas lus sib npaug zos mus rau ntawm cov qhov tso tawm.
Yog hais tias muaj kev nraub qaum ntawm qhov cam ntom ntawm cov tapered kab thiab cov neeg cam cam yuav ua rau lub tshuab ntxhua khaub ncaws tsis zoo.
Qhov backlash no yuav raug muab tshem tawm los ntawm kev hloov cov eccentric flange uas txhawb lub tswv yim ncej thiab kom luv ntawm qhov kev sib txuas ntawm cov khoom tawm thiab cov zis tawm sab. Lub rigidity ntawm tus indexing tsav yuav kho kom zoo los ntawm kev kho lub preload paab tsis pub dhau lub cheeb tsam elastic ntawm lub cam follower thiab cam.
Nws cov qauv thiab kev ua haujlwm yog qhov tseem ceeb tshaj plaws ntawm no ua ke ntawm globoidal cam thiab cam follower, ua rau nws muaj peev xwm ua haujlwm ceev.
4. Muaj pes tsawg tus qauv?
Cov Cuab Yeej Ntsuas Cov Cim Ntsuam Xyuas Cov Cuab Yeej Ntsuas Cov Cim Ntsuam Xyuas Cov Cuab Yeej Ntsuas Cov Cim Ntsuam Xyuas Cov Cuab Yeej Ntsuas Cov Qauv Ntsuas, axis Coupling Unit, Triple Ncej Cam Indexer.
Peb kuj txhawb kev tshwj xeeb kev sib txawv kev pabcuam tshwj xeeb thiab kev ua haujlwm tshwjxeeb.
Hom | Qauv | Permissible Output Radial Load (kgf) | Permissible Output Axial Load (kgf) | Indexing Accuracy (Arc sec) | Nyhav | |||
Ncej Qauv Cam Txhaij Indexing | 25DS | 15 | 20 | ± 75 | 1.0 | |||
32DS | 20 | 30 | 60 xyoo | 1.4 | ||||
45DS | 80 | 72.5 | ± 30 | 6.0 | ||||
60DS | 180 | 150 | ± 30 | 10.0 | ||||
70DS | 220 | 220 | ± 30 | 16.0 | ||||
80DS | 220 | 220 | ± 30 | 29.0 | ||||
Flange Model Cam Indexer | 45DF | 130 | 140 | ± 30 | 7.5 | |||
60DF | 140 | 142 | ± 30 | 14.0 | ||||
70DF | 220 | 300 | ± 30 | 19.0 | ||||
80DF | 330 | 420 | ± 30 | 31.5 | ||||
110DF | 560 | 700 | ± 30 | 60.0 | ||||
140DF | 760 | 1000 xyoo | ± 30 | 90.0 | ||||
180DF | 1200 | 1500 | ± 30 | 220.0 | ||||
250DF | 3200 | 4150 | ± 30 | 685.0 | ||||
Flange Ncej Qauv Qauv Indexing Drive | 45DFS | 80 | 72.5 | ± 30 | 6.0 | |||
60DFS | 180 | 150 | ± 30 | 10.0 | ||||
70DFS | 220 | 220 | ± 30 | 16.0 | ||||
80DFS | 220 | 220 | ± 30 | 29.0 | ||||
110DFS | 500 | 550 | ± 30 | 51.0 | ||||
140DFS | 730 | 860 | ± 30 | 120.0 | ||||
180DFS | 1200 | 1500 | ± 30 | 220.0 | ||||
Indexing Segments Options rau DS / DF Qauv: | ||||||||
Hom | Qauv | Permissible Output Radial Load (kgf) | Permissible Output Axial Load (kgf) | Indexing Accuracy (Arc sec) | Nyhav | |||
Rooj Qauv Qauv Ntsuas Index | 80DT | 520 | 220 | ± 30 | 35.0 | |||
110DT | 860 | 420 | ± 30 | 50.0 | ||||
140DT | 1015 | 720 | ± 30 | 80.0 | ||||
180DT | 1500 | 1100 | ± 30 | 180.0 | ||||
210DT | 1900 | 1500 | ± 30 | 450.0 | ||||
250DT | 2500 | 1800 | ± 30 | 450.0 | ||||
350DT | 4500 | 3300 | ± 30 | 1000.0 | ||||
Hom | Qauv | Permissible Output Axial Load P1 (kgf) | Permissible Output Axial Load P2 (kgf) | Repeatability | Nyhav | |||
Ultrathin Lub Rooj Qauv Qauv Ntsuas Index | 70DA | 3100 | 1400 | ± 30 | 15.0 | |||
90DA | 4900 | 2100 | ± 30 | 24.0 | ||||
110DA | 6800 | 3400 | ± 30 | 42.0 | ||||
150DA | 11000 | 6800 | ± 30 | 85.0 | ||||
Indexing Segments Options rau DT Qauv: | ||||||||
Hom | Qauv | Permissible Output Radial Load | Permissible Output Axial Load | Indexing Accuracy (Arc sec) | Nyhav | |||
Sway Model Indexing Cam | 45DSU | 5 kgf | 9 kgf | ± 30 | 15.0 | |||
60DSU | 6 kgf | 11 kgf | ± 30 | 20.0 | ||||
70DSU | 7 kgf | 14 kgf | ± 30 | 22.0 | ||||
80DSU | 15 kgf | 18 kgf | ± 30 | 33.0 | ||||
110DSU | 25 kgf | 30 kgf | ± 30 | 100.0 | ||||
Qauv | Permissible Output Radial Load | Permissible Output Axial Load | Repeatability | Nyhav | ||||
60DFN | 340 N | 39.2 N | 60 xyoo | 15.0 | ||||
80DFN | 195 N | 147 N | ± 30 | 35.0 | ||||
100DFN | 98 N | 245 N | 60 xyoo | 27.0 | ||||
Hom | Qauv | Permissible Output Axial Force (kgf) | Permissible Output Radial Force (kgf) | Repeatability | Nyhav | |||
Paradex Model Cam Indexing Drive | PU50 | 130 | 100 | 60 xyoo | 7.5 | |||
PU 65 | 250 | 160 | 60 xyoo | 14.0 | ||||
PU80 | 360 | 250 | 60 xyoo | 20.0 | ||||
PU100 | 480 | 400 | 60 xyoo | 36.0 | ||||
PU125 | 520 | 630 | 60 xyoo | 65.0 | ||||
PU150 | 750 | 860 | 60 xyoo | 100.0 | ||||
PU175 | 920 | 1000 xyoo | 60 xyoo | 160.0 | ||||
PU225 | 1435 | 1470 | 60 xyoo | 285.0 | ||||
PU250 | 1550 | 1560 | 60 xyoo | 350.0 | ||||
PU320 | 2300 | 2400 | 60 xyoo | 750.0 | ||||
Hom | Qauv | Permissible Output Axial Load (kgf) | Permissible Output Radial Load (kgf) | Indexing Accuracy (Arc sec) | Nyhav | |||
Lifting Mechanism Custom Cam Indexer | 80DT Lifting | 520 | 220 | ± 30 | 50.0 | |||
Hom | Qauv | Permissible Output Axial Load (kgf) | Permissible Output Radial Load (kgf) | Indexing Accuracy (Arc sec) | Nyhav | |||
Analog tsib-axis Coupling Unit | 45DF + 60DF | Thov hu rau catalogue | 7.5 + 14 = 21.5 | |||||
Hom | Qauv | Permissible Output Axial Load (kgf) | Permissible Output Radial Load (kgf) | Repeatability | Nyhav | |||
Triple Ncej Cam Indexer | 50D3S | 130 | 140 | 60 xyoo | 25.0 | |||
Hom | Diam duab | Sau ntawv | ||||||

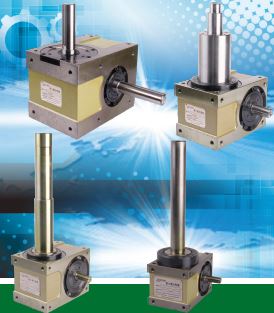

Tshwj xeeb Dimension Custom Cam Indexer |
| Thov hu nrog kev muag khoom | ||||||

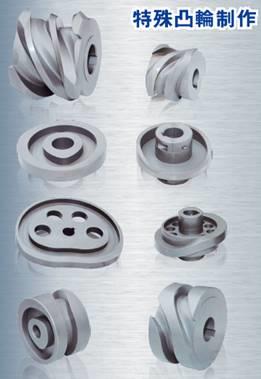

Tshwj Xeeb Kev Cai Globoidal Cam |
| Thov hu nrog kev muag khoom | ||||||
Yog xav paub ntxiv, thov hu rau kev muag khoom rau Khoom Catalog.
5. Cov Hom Kev Ntaus Ntaus Siv Cov Zog Ntaus Dab Tsi?
Lub Cuab Yim Cuab Yeej siv tau rau ntau daim ntawv thov xws li CNC Indexing Ntaus, Tawm Tseg, Hluav taws xob sib txuas hauv tshuab, plaster thawv manufacturing khoom, zaub mov filling thiab wrapping cov cav tov, ntau yam kev sib dhos thiab kuaj cav.
Indexing Drives | Oscillating Drives |
|
|
Cov Neeg Tsav Tsheb | Oscillate Tes |
|
|
Index Handler | Qhov Cuam Tshuam |
|
|
Rau ntau daim ntawv thov, thov nyem GIGAGER Youtube Channel: https://www.youtube.com/ playlist? List=PLT-2VrhPP3YItwfN_wA4YkS8bzfBpJu39
6. Xaiv Tus Qauv Hauv Txoj Cai rau Kuv Tus Ntaus Li Cas?
Yeej, peb xav tau cov ntaub ntawv hauv qab no, thov xa mus rau peb kev muag khoom.
a, Dab tsi yog qhov nyhav ntawm qhov chaw? Dimension? Yam khoom tsis raug zoo lossis niaj hnub kwv?
b, Cov khoom siv: Cov hlau los yog Aluminium, los yog_________, Txheej Txhuas = ______ hli, Thickness = _______ mm
c, Pes Tsawg Segmentation? Los yog qhov kev tawm suab li cas?
d, Txhua sij hawm mus ncig xyuas = = Muab lub sij hawm + Lub sij hawm muab tso, _________ = ________ + _________ vib nas this
e, Fixture hnyav: ____________ kg / pcs
f, yees duab, kos duab los yog ntau dua info txog koj ntaus ntawv
Peb tus engineer yuav tsum tawm tswv yim rau tus qauv tsim raws li koj txoj cai.
Yog xav paub ntxiv txog cov qauv xaiv ntawm Cam Indexing Drive, thov mus saib ntawm Cov Qauv Xaiv Cov Ntawv Phaj hauv Catalog.
